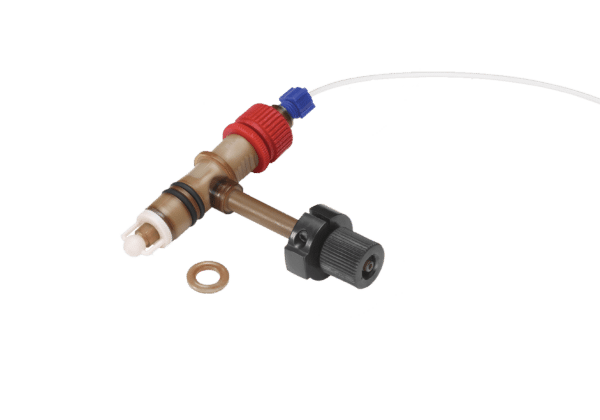

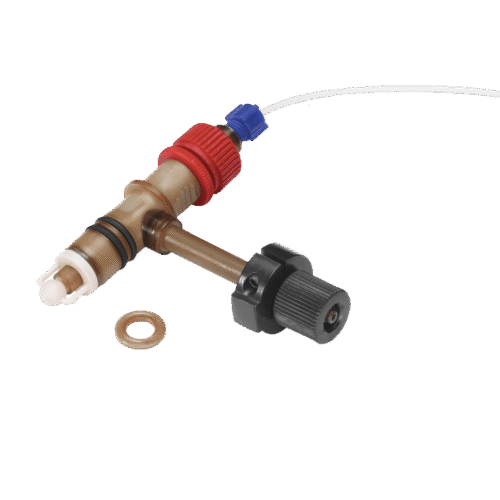

A complete High-Sensitivity plastic body nebulizer featuring Viton o-rings and Platinum/Iridium needle. The body is fabricated of inert plastic materials for maximum performance and corrosion resistance. This high-sensitivity nebulizer is for most solutions, but not for precious metal samples containing aqua regia.
This assembly includes:
- Impact Bead, Qty. 1 (B0505086)
- Nebulizer Spacer, Qty. 1 (B3150531)
- O-Rings for Nebulizer Body, Qty. 2 (09902015)
- Spring, Qty. 1 (09920483)
- O-Ring for Capillary Assembly, Qty. 1 (09926127)
- Pt/Ir Capillary Assembly with O-Ring, Qty. 1 (B3150525)
- Locking Ring, Qty. 1 (N3151205)
- Fine Adjustment Nut, Qty. 1 (B3150462)
It’s compatible with the PerkinElmer AAnalyst® 200/400/700*/800* AA instruments.
Note: The AAnalyst® 700/800 requires end cap assembly (N0370392).
Specifications
| Material | Plastic Body |
|---|---|
| Product Compatibility | AAnalyst 800, AAnalyst 700, AAnalyst 200, AAnalyst 400 |
| Product Group | Nebulizers |
| Style | High Sensitivity |
| Technology Type | AA |
