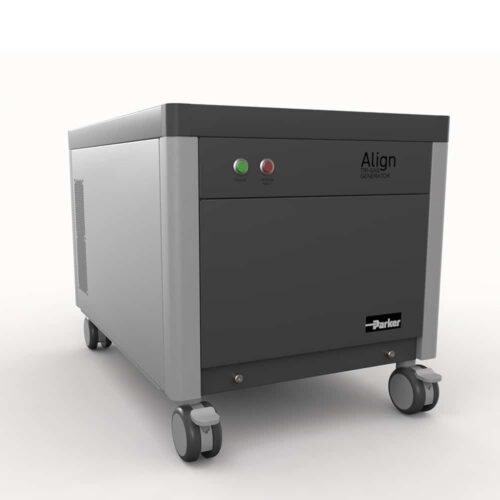

The ALIGN Multi-Gas Generator is intended to supply lab-grade nitrogen, dry air and zero air to LC-MS and other instrumentation systems within a laboratory setting. To guarantee the optimum efficiency of the nitrogen and dry air membranes it is recommended that the ALIGN Multi-Gas Generator be run at or below the recommended pressure and flow for each of the outlet gases. Compatible with Sciex LC/MS Systems
Outlet Gas Specifications:
- Nitrogen Gas Purity1 up to 99% N2 with respect to O2
- Nitrogen Gas Organics Elimination of up to 99.999% organics
- Nitrogen Gas Max Flow/Pressure 19 SLPM/80 psig (5.5 barg, 552 kPa)
- Air 1 Purity1 <0.1 ppm total hydrocarbons / -35°F (-37°C) atm dew point
- Air 1 Max Flow/Pressure 25 SLPM/110 psig (7.6 barg, 758 kPa)
- Air 2 Purity1 <0.1 ppm total hydrocarbons / -35°F (-37°C) atm dew point
- Air 2 Max Flow/Pressure 25 SLPM/110 psig (7.6 barg, 758 kPa)
- Suspended Liquids: None
- Phthalates: None
- Max Tank Operating Pressure: 115±2 psig (7.9±0.1 barg, 793 kPa)
- Gas Outlets: 1/4’’ NPT
For additional detail, check the Documentation tab.
