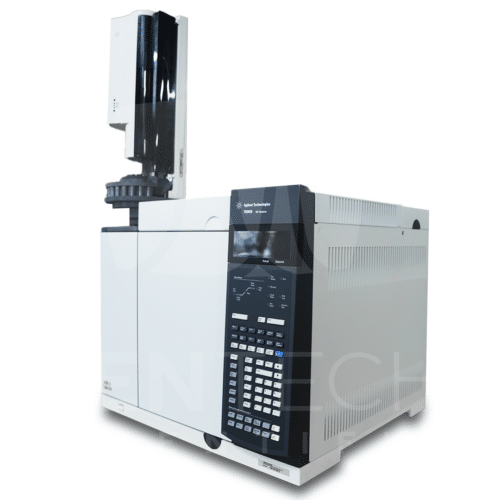

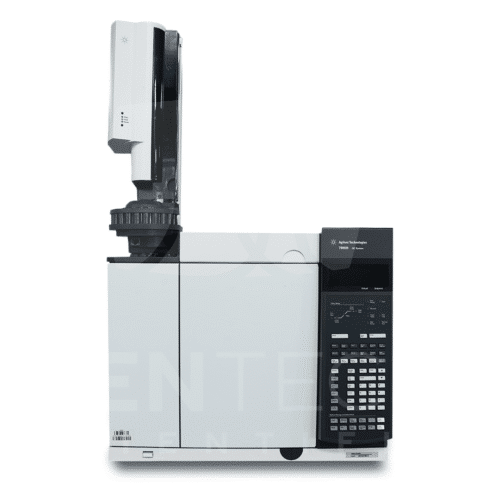

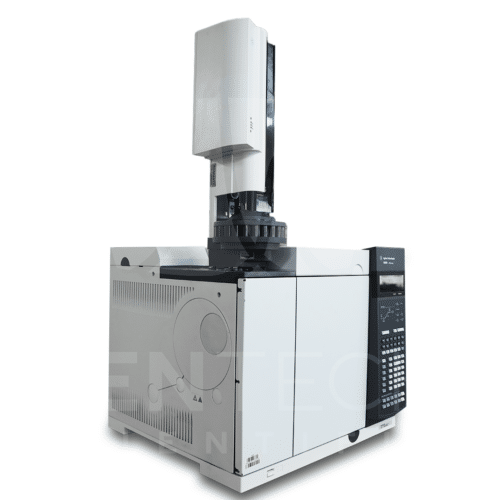

Agilent 7890B GC System

What you are buying

Most petrochemical, environmental, and food-safety methods call for the capillary GC separations the Agilent 7890B runs. Electronic pneumatic control meters the carrier gas to 0.001 psi; the heated inlet vaporizes the sample and carries it onto the column; the oven programs from 4 to 450°C; the detector measures each compound as it elutes. GenTech rebuilds, plumbs, and tests the inlets, detectors, and flow path. You receive a GC that arrives verified and ready to run your methods.

Every unit moves through the GenTech Certified process. Solution Scientists disassemble and inspect each module, replace all consumables and degraded wear components, then tune and calibrate the instrument and verify performance against OEM and published benchmarks using known reference chemicals. The instrument ships with its verification report. A certified-refurbished system gives you that performance without the capital cost or the lead time of a new purchase.

What Agilent says about this platform

Agilent positions the 7890B as the most widely used GC system in the world. The system pairs accurate temperature control with precise injection and enhanced electronic pneumatic control for retention time performance. Retention Time Locking maintains the same retention time from injection to injection, column to column, instrument to instrument, and lab to lab. Capillary Flow Technology enables Deans-switch multidimensional GC, two-dimensional GC with flow modulation, and backflush at any point along the column. A single-filament TCD skips the separate reference gas and the manual potentiometer adjustment. It holds a stable baseline with minimal drift. Agilent’s Inert Flow Path raises sensitivity for active compounds from injection through detection. Low Thermal Mass modules, up to four per system, speed sample throughput with rapid column heating and cooling.

What each component does

Inlet

Vaporizes the sample and delivers it to the head of the column. Split/splitless handles routine concentrations; the multimode and PTV inlets add programmed temperature for trace work and thermally fragile compounds; cool on-column places the sample directly on the column for the heaviest analytes. The 7890B holds up to two inlets.

Column oven

Programs from 4 to 450°C across 20 ramps and 21 plateaus, with fast ramping to 75°C per minute on a 120 V oven and higher on 240 V. Faster ramps and a four-minute cool-down cut cycle time at the lowest cost per sample.

Electronic pneumatic control

Meters carrier and detector gases to 0.001 psi and 0.05 mL/min and compensates for changes in ambient pressure and temperature. Precise pneumatics are the basis for the retention-time repeatability every quantitative method depends on.

Detectors

The 7890B carries up to three detectors matched to the chemistry: FID for hydrocarbons and general organics, TCD for fixed gases, micro-ECD for halogens and pesticides, NPD for nitrogen and phosphorus, and FPD for sulfur and phosphorus. Flow splitting sends one injection to two detectors for more information per run.

Capillary Flow Technology

Provides leak-free, in-oven connections for backflush, Deans-switch heart-cutting, and two-dimensional GC without cryogen. Backflush vents heavy matrix before it reaches the detector or the MS source, which protects the flow path and removes carryover.

Technical detail

*OEM specifications for brand new instrument.

Labs that run this system

The 7890A is method-compatible across the techniques most regulated and research labs run every day. These are the application areas buyers ask about most.
